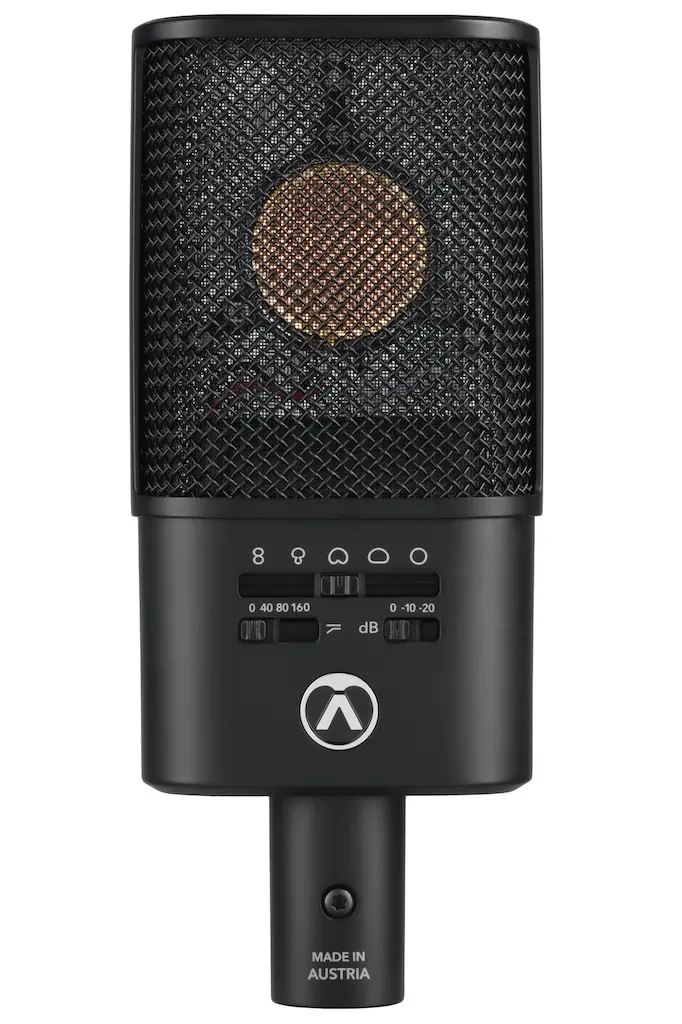

Austrian Audio has officially announced the launch of the OC616, a professional-grade large-diaphragm condenser microphone designed to offer high-fidelity multi-pattern versatility to a broader segment of the recording industry. Debuting at the LEAT CON 26 convention in Hamburg, Germany, the OC616 represents a strategic expansion of the manufacturer’s acclaimed "OC" (Open Condenser) series. The microphone is built around the CKR12 ceramic capsule, a proprietary technology developed by the company’s Vienna-based engineering team to bridge the gap between historical sonic characteristics and modern manufacturing precision. By integrating five selectable polar patterns and the brand’s signature Open Acoustics technology, the OC616 is positioned as a high-performance tool for project studios, professional recording facilities, and live sound environments.
Technical Foundation: The CKR12 Ceramic Capsule
The core of the OC616 is the CKR12 capsule, which is widely regarded as a modern evolution of the legendary CK12 brass capsule. Historically, the CK12 was the centerpiece of some of the most revered microphones in audio history, such as the AKG C12 and the Telefunken ELA M 251. However, traditional brass capsules were notoriously difficult to manufacture with consistency, often resulting in slight sonic variations between units. Austrian Audio’s engineers, many of whom were former senior personnel at AKG’s original Vienna headquarters, addressed this by developing a ceramic-based insulator design.
The CKR12 utilized in the OC616 is an edge-terminated, dual-diaphragm capsule handmade in Vienna. The transition to a ceramic material for the capsule’s housing provides significant advantages in terms of structural stability and thermal resistance. Unlike traditional materials, ceramic is less susceptible to humidity and temperature fluctuations, ensuring that the OC616 maintains its specified frequency response and sensitivity across different environmental conditions. This consistency is critical for stereo recording applications where matched pairs are required. Sonically, the CKR12 is engineered to provide the three-dimensional, detailed high-end associated with vintage Viennese designs while offering the low-noise floor and high-SPL handling demanded by modern digital recording workflows.
Open Acoustics Technology and Sonic Transparency
One of the defining features of the OC616 is the implementation of Austrian Audio’s Open Acoustics technology. In conventional microphone designs, the internal housing and the structure surrounding the capsule can create unwanted reflections and standing waves. These acoustic artifacts often lead to phase interference and coloration, particularly in the off-axis response.
The OC616 employs a specialized internal suspension and a minimalist housing frame that allows the capsule to operate with minimal physical obstruction. By reducing the surface area where sound waves can bounce back into the diaphragm, the microphone achieves a more linear frequency response and a more natural polar pattern. This design philosophy is intended to provide a "transparent" sound, where the microphone captures the source with minimal editorializing. According to Austrian Audio, this results in a more realistic sense of depth and spatial accuracy, making it easier for engineers to place the recorded track within a complex mix without excessive equalization.
Operational Versatility and Performance Specifications
The OC616 is designed to be a "workhorse" microphone, capable of handling a diverse range of sound sources. It offers five selectable polar patterns: omnidirectional, wide cardioid, cardioid, supercardioid, and figure-eight. This range allows users to adapt the microphone to various recording scenarios, such as capturing the natural ambience of a room with the omni setting or rejecting bleed from other instruments in a live session using the supercardioid pattern.
To accommodate high-volume sources, the OC616 features two switchable attenuation pads at -10 dB and -20 dB. With the pads engaged, the microphone can withstand a maximum sound pressure level (SPL) of 157 dB. This makes it suitable for recording extremely loud sources, including kick drums, brass sections, and high-gain guitar amplifiers, without risking signal distortion. Additionally, the microphone includes three switchable high-pass filters (40 Hz, 80 Hz, and 160 Hz) to mitigate the proximity effect or eliminate low-frequency rumble from air conditioning units or floor vibrations.
The technical specifications of the OC616 highlight its professional-grade performance:
- Maximum SPL: 157 dB
- Dynamic Range: 134 dB
- Self-noise: 9 dB SPL (A-weighted)
- Sensitivity: 20 mV/Pa
- Frequency Range: 20 Hz to 20 kHz
Market Positioning and Strategic Context
The introduction of the OC616 fills a specific niche within Austrian Audio’s product hierarchy. It sits between the OC16, a streamlined cardioid-only microphone, and the flagship OC818, which features remote-controlled polar patterns and dual outputs for post-recording polar pattern manipulation.
While the OC616 shares the same high-quality CKR12 capsule as the OC818, it is tuned for a more "direct" and "present" sonic character. Martin Seidl, CEO of Austrian Audio, noted during the launch that the OC616 is designed to reproduce sources with a sense of realism and clarity that is characteristic of the company’s engineering heritage, but at a price point that is more accessible for project studio owners and independent producers. At a pre-order price of 599 Euro, the OC616 competes directly with established mid-range multi-pattern condensers from manufacturers like Neumann, AKG, and Audio-Technica.
Event Context: LEAT CON 26 in Hamburg
The unveiling of the OC616 took place at LEAT CON 26, held at the Hamburg Messe from October 6 to 8, 2026. LEAT CON (Live, Entertainment, and Technology Convention) has grown into one of Europe’s premier events for the audio-visual and event technology sectors. The choice of this venue for the product launch underscores Austrian Audio’s commitment to both the recording studio and the high-end live sound markets.
Hamburg’s role as a central hub for the European music and media industry provided a strategic backdrop for the announcement. Industry professionals attending the convention had the opportunity to examine the OC616 at the Austrian Audio exhibit in Hall A1, Stand F11-3. The convention’s focus on "Next Generation" technology aligned with the microphone’s marketing as a modern tool built on classic foundations.
Chronology of the OC Series Development
The launch of the OC616 is the latest milestone in a timeline that began shortly after Austrian Audio’s founding in 2017.
- 2017: Former AKG engineers found Austrian Audio in Vienna following the closure of the local AKG factory by its parent company, Harman International (Samsung).
- 2019: The company launches the OC818 and OC18, introducing the CKR12 capsule to the global market.
- 2021-2023: Expansion into the headphone market (Hi-X series) and the introduction of the OC16, aimed at the home recording boom.
- 2026 (October): The OC616 is introduced at LEAT CON 26, specifically targeting the gap in the mid-priced multi-pattern microphone market.
This timeline reflects a steady progression from high-end niche products to a more comprehensive catalog that addresses various tiers of the audio production industry.
Industry Implications and Analysis
The release of the OC616 arrives at a time when the boundary between "home" and "pro" studios continues to blur. Modern producers frequently require microphones that offer the flexibility of multiple polar patterns without the extreme price tag of flagship vintage-reissue models. By utilizing the same capsule as their top-tier microphone but simplifying the electronic interface (removing the dual-output and Bluetooth remote features of the OC818), Austrian Audio is leveraging its internal R&D to offer premium sound quality to a wider audience.
From a technical standpoint, the focus on "Open Acoustics" reflects a broader trend in the industry toward achieving higher linearity and phase coherence. As digital recording resolution has increased, the flaws of traditional microphone housings—such as "boxy" off-axis coloration—have become more apparent to listeners and engineers. The OC616’s design addresses these concerns, potentially setting a new standard for how mid-range microphones are constructed.
Official Responses and Availability
Initial reactions from the audio engineering community at LEAT CON have highlighted the OC616’s robust build quality and the inclusion of a comprehensive accessory kit. The OC616 Studio Set includes the microphone itself, the OCS6 elastic spider shock mount, the OCH8 microphone clip, and a durable MSC616 transport case.
"The OC616 reproduces sources exactly as they are meant to sound—clear, direct, and present, with the depth and realism that our engineers are known for," stated Martin Seidl during the presentation. The microphone is available for pre-order immediately through authorized global distributors.
As Austrian Audio continues to expand its footprint, the OC616 serves as a testament to the enduring relevance of Viennese audio engineering. By combining the heritage of the CK12 design with contemporary materials and acoustic theories, the company aims to provide a tool that meets the rigorous demands of the 21st-century audio landscape while maintaining a link to the golden age of microphone manufacturing.
