The professional lighting industry has witnessed a significant technological leap with the introduction of the Martin MAC Aura XIP, a fixture that bridges the gap between high-performance indoor washlights and rugged outdoor-capable equipment. Since the original MAC Aura debuted in 2011, Martin has consistently refined the "Aura" concept—a minimalist, lightweight moving head featuring two independent layers of light. The latest iteration, the MAC Aura XIP, represents a fundamental reimagining of this legacy, incorporating an IP54 weather rating, a revolutionary "filament" aura design, and a sophisticated sensor suite designed to ensure operational longevity in challenging environments.
The MAC Aura XIP is not merely an incremental update; it is a versatile multi-tool designed for a wide spectrum of applications, from high-profile concert tours and theatrical productions to outdoor festivals and television broadcasts. By balancing a light weight of just 8.95 kilograms with a robust output of 6,000 lumens, Martin has addressed a long-standing demand in the market for fixtures that offer weather protection without the prohibitive weight penalties typically associated with IP-rated hardware.
A Twelve-Year Evolution: From the Original Aura to the XIP
The trajectory of the MAC Aura series provides a roadmap for the evolution of LED lighting technology over the past decade. When the first MAC Aura arrived in 2011, it disrupted the market with its compact form factor and the "Aura" effect—a secondary LED layer that added depth and visual interest to the lens. This was followed by the MAC Aura XB, which responded to the industry’s demand for increased brightness by delivering 50% more output through 15W RGBW LEDs.
In 2020, the series expanded with the MAC Aura PXL, which utilized 40W LEDs and introduced a massive 141-pixel Aura layer, catering to the burgeoning field of pixel mapping and complex digital lighting effects. The 2023 launch of the MAC Aura XIP marks the fourth major milestone in this chronology. Unlike the PXL, which prioritized sheer pixel density, the XIP focuses on a balance of aesthetic distinction and environmental adaptability. It introduces a refined optical system featuring seven 60W RGBW "Beam Pixels" and a completely redesigned Aura layer consisting of twelve 4W RGBW "filaments."
Technical Specifications and the "Filament" Aesthetic
The most striking visual feature of the MAC Aura XIP is its redesigned Aura layer. Moving away from the traditional point-source LED background, Martin has implemented twelve LED strips designed to mimic the appearance of incandescent filaments. These "filaments" are arranged in a radial pattern around the central beam pixels, providing a high degree of brand recognition and a vintage-inspired aesthetic that appeals to lighting designers looking for unique "eye-candy" effects.
Despite having fewer primary beam pixels than its predecessors—seven compared to the nineteen found in the XB—the XIP maintains competitive brightness through higher-wattage 60W diodes. These primary light sources are paired with a high-efficiency zoom system, capable of a range from a tight 6.3-degree beam to a wide 50.4-degree wash. The optical path is protected by a closed lens system and a flexible "accordion" rubber seal that allows for full zoom movement while preventing moisture ingress.
Weather Protection and the "Auto Empty Water" Innovation
The "IP" in the product’s name refers to its IP54 classification, which signifies protection against dust and splashing water from any direction. While many outdoor fixtures rely on heavy, sealed metal housings, the MAC Aura XIP utilizes a high-impact plastic housing that keeps the unit’s weight below 9 kilograms. This makes it an "outdoor-lightweight" fixture, significantly easing the logistics of rigging and transport for large-scale events.
To manage the challenges of outdoor use, Martin has integrated an "Auto Empty Water" function. Utilizing an internal orientation sensor and moisture detectors, the fixture can detect if it is positioned in a way that allows rainwater to pool on the front lens. If the function is active, the fixture will periodically tilt the head downward to drain accumulated water before returning to its previous position. This simple yet effective mechanical solution prevents water-related optical distortions and reduces the risk of long-term moisture damage.
Supporting this is the "Safe Parking" mode. When the fixture is not receiving a control signal or is powered down, it automatically tilts the head toward the ground. This serves a dual purpose: protecting the lenses from rain and snow, and preventing the "magnifying glass effect," where direct sunlight entering the lenses could focus heat and damage internal components. Additionally, a "Dry Off" cycle uses internal heat, fan activity, and movement to evaporate any residual moisture after an outdoor session, ensuring the unit is dry before being placed back into a flight case.
Advanced Control and "Ludicrous" DMX Mapping
The MAC Aura XIP offers four distinct DMX operating modes, designed with a modular logic that allows for easy integration into existing show files. The "Compact" mode utilizes 20 channels for basic washlight functionality, while the "Basic" mode expands to 36 channels to include independent Aura control and access to Martin’s extensive library of over 200 pre-programmed effects.
For designers requiring granular control, the "Extended" mode provides individual RGB access to each of the seven beam pixels across 57 channels. The most comprehensive option is the "Ludicrous" mode, a name chosen with a wink to the high channel count of 93. In this mode, every individual filament in the Aura layer is independently addressable, allowing for intricate, multi-layered patterns and gradients.
The fixture also integrates seamlessly with Martin’s P3 control protocol. This allows the MAC Aura XIP to be treated as a video-mapped surface, where the beam pixels and Aura filaments can be driven by media server content alongside traditional DMX lighting control. The unit supports RDM (Remote Device Management) and is compatible with Art-Net and sACN protocols via its dual EtherCon ports.
Acoustic Performance and Studio Suitability
While the XIP is rugged enough for outdoor festivals, it is also engineered for the silent requirements of television studios and theaters. The fixture features a sophisticated fan management system with five distinct modes. In "Constant Fan Full" mode, the unit produces its maximum 6,000-lumen output. However, for noise-sensitive environments, the "Constant Fan ULow" mode reduces the operating noise to approximately 25 dB(A) while still maintaining 88% of its maximum brightness.
The LED engine is designed for flicker-free operation, a critical requirement for modern broadcast environments. The PWM (Pulse Width Modulation) frequency for the beam pixels can be adjusted from 2,400 Hz to 3,000 Hz, with a dedicated "High Speed" option at 24,000 Hz to accommodate high-frame-rate cameras. The Aura filaments are fixed at 1,200 Hz, ensuring a stable visual background for on-camera applications.
Operational Logic and Maintenance

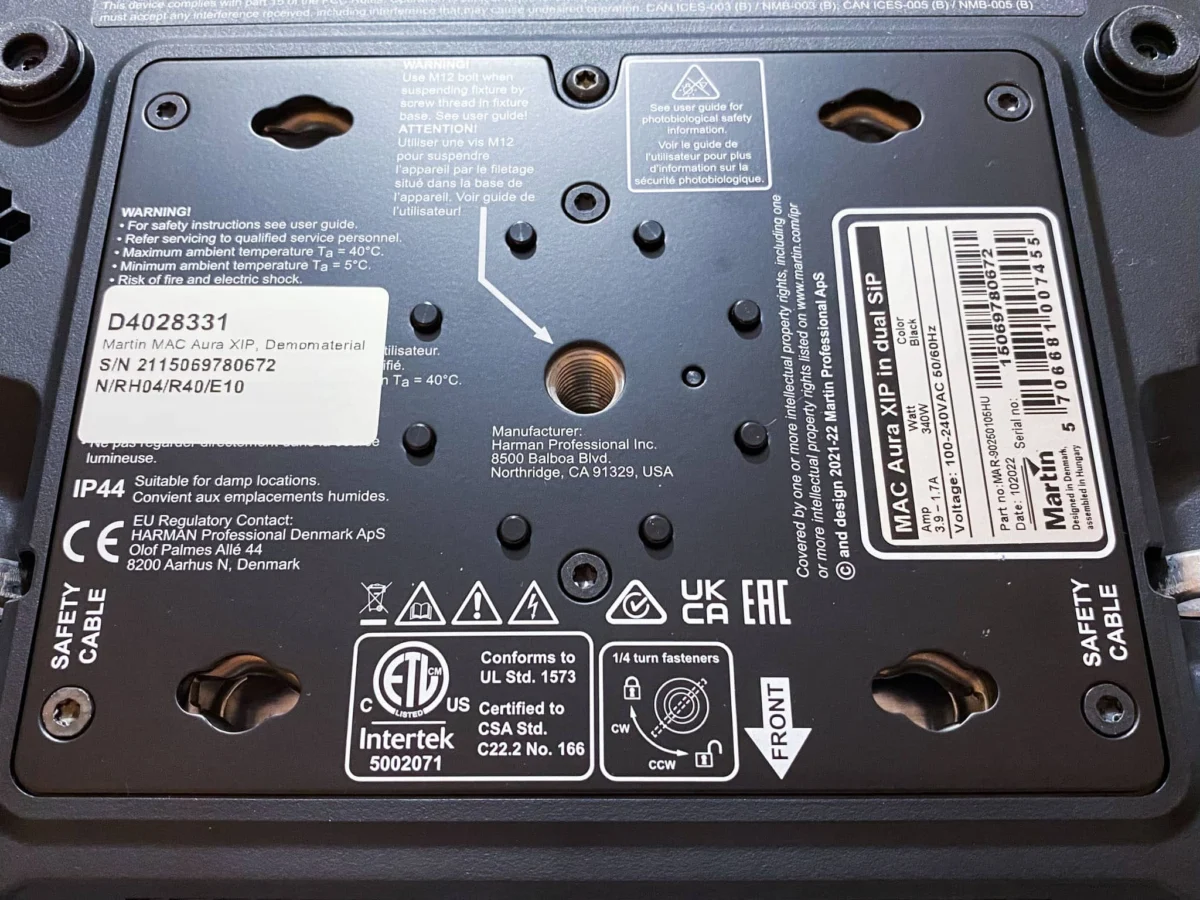

Martin has prioritized ease of use in the MAC Aura XIP’s physical design. The base of the unit includes both a central M12 threaded hole and four Camlock attachment points for Omega brackets, offering flexibility in mounting orientations. For outdoor use, the internal orientation sensor alerts the user via the display if the unit is mounted with its connectors facing upward—a position that could compromise the IP rating.
The unit’s connections include Neutrik PowerCon True 1 for power and 5-pin XLR for DMX, all of which are protected by custom-fit rubber caps when not in use. A USB-C port is included for rapid firmware updates. Maintenance is further simplified by a "Fan Clean" function, which runs the fans at maximum speed to clear dust, and a user-replaceable CR123A battery that allows for menu configuration even when the fixture is not connected to mains power.
Market Impact and Industry Reception
The release of the MAC Aura XIP has been met with positive reactions from lighting rental houses and touring technicians. The consensus is that Martin has successfully modernized a "workhorse" fixture. By providing a light that can move between an indoor corporate event and an outdoor festival stage without requiring different models or heavy protective domes, Martin has improved the return on investment for equipment owners.
Industry analysts suggest that the XIP sets a new benchmark for "weather-ready" lighting. Rather than aiming for the highest possible IP rating (such as IP65 or IP66), which often results in bulky, heavy fixtures, the choice of IP54 for the XIP targets the most common real-world scenario: temporary exposure to rain and wind during events. This pragmatic approach to engineering allows the fixture to remain fast, quiet, and easy to handle.
Conclusion and Future Outlook
The Martin MAC Aura XIP represents a mature evolution of the LED washlight. It combines over a decade of user feedback with cutting-edge sensor technology and a distinctive visual identity. With its "filaments" providing a unique aesthetic and its "Auto Empty Water" and "Safe Parking" features providing peace of mind for outdoor deployments, the XIP is positioned to remain a staple of professional lighting rigs for years to come.
As the industry moves toward more integrated, smart fixtures, the MAC Aura XIP stands as a testament to the importance of balancing raw power with intelligent self-protection and refined control. It is a tool built for the realities of modern production, where versatility, weight, and reliability are just as important as the quality of the light itself. With a net MSRP of approximately €5,050 and the availability of specialized flight case inserts, the MAC Aura XIP is prepared for global adoption across all sectors of the entertainment technology industry.
