The professional audio-visual industry is currently undergoing a significant shift toward integrated networking, where the traditional boundaries between lighting control, audio transmission, and data networking are increasingly blurred. In response to this demand for streamlined infrastructure, Sommer cable has announced the release of the SC-Monocat 303, a high-performance hybrid cable designed to consolidate multiple signal paths into a single, resilient solution. By combining three independent CAT.7 lines with three DMX/NF (Low Frequency) channels, the SC-Monocat 303 aims to address the logistical and technical challenges faced by touring professionals, outside broadcast (OB) teams, and installation engineers.
The introduction of the SC-Monocat 303 marks a strategic expansion of Sommer cable’s portfolio, targeting environments where setup speed, rack space optimization, and signal integrity are paramount. As modern stage productions transition toward Art-Net, sACN, and Dante protocols, the requirement for robust Ethernet connectivity has skyrocketed. However, the continued reliance on traditional DMX512 for lighting and balanced analog or digital audio for intercoms and monitoring necessitates a "best of both worlds" approach. The SC-Monocat 303 is engineered to provide this duality without the bulk usually associated with multi-core hybrid systems.
Technical Architecture and Physical Specifications
At the core of the SC-Monocat 303’s design is a focus on high-density signal transmission within a remarkably compact footprint. Despite housing six distinct high-quality lines, the cable maintains an outer diameter of just 18 millimeters. This slim profile is a critical factor for touring productions where truck space is at a premium and cable management in crowded stage wings or OB van patch bays can become a significant bottleneck.
The cable features three CAT.7 elements, each capable of supporting 10-gigabit Ethernet (10GBASE-T) transmissions. These lines are built with high-quality Oxygen-Free Copper (OFC) conductors, ensuring low attenuation and high signal stability over long distances. To prevent electromagnetic interference (EMI) and crosstalk between the high-frequency data lines and the control signals, Sommer cable has employed a sophisticated shielding strategy. Each CAT.7 pair is individually shielded (S/FTP), providing a clean environment for sensitive data packets even in electromagnetically noisy environments, such as those found near large LED walls or high-voltage power distributions.
Complementing the network capabilities are three DMX/NF lines. These are designed with a characteristic impedance of 110 ohms, meeting the strict requirements for DMX512 lighting control and AES/EBU digital audio. The versatility of these cores allows them to be used for traditional analog audio signals as well, providing a multifaceted tool for engineers who need to run talkback systems, remote control signals, or localized audio feeds alongside their primary network backbone.
Environmental Resilience and Handling
Touring equipment is subjected to extreme physical stress, ranging from the mechanical strain of frequent winding and unwinding to the environmental hazards of outdoor festivals. The SC-Monocat 303 is encased in a UV-resistant PVC jacket that is specifically formulated to remain flexible at low temperatures while resisting the degrading effects of direct sunlight. The manufacturer specifies a functional temperature range from -20 °C to +75 °C, making it suitable for year-round use in diverse climates, from sub-zero winter tours to the intense heat of summer outdoor stages.
The haptic quality of the cable has also been a focus of development. In professional live sound and lighting, the "feel" of a cable—how it coils and whether it retains "memory" or kinks—is a vital metric for technicians. The SC-Monocat 303 is designed to be supple enough for easy handling on cable drums, yet rugged enough to withstand being stepped on or run over by flight cases, a common occurrence in the "touring-alltag" (daily touring routine).

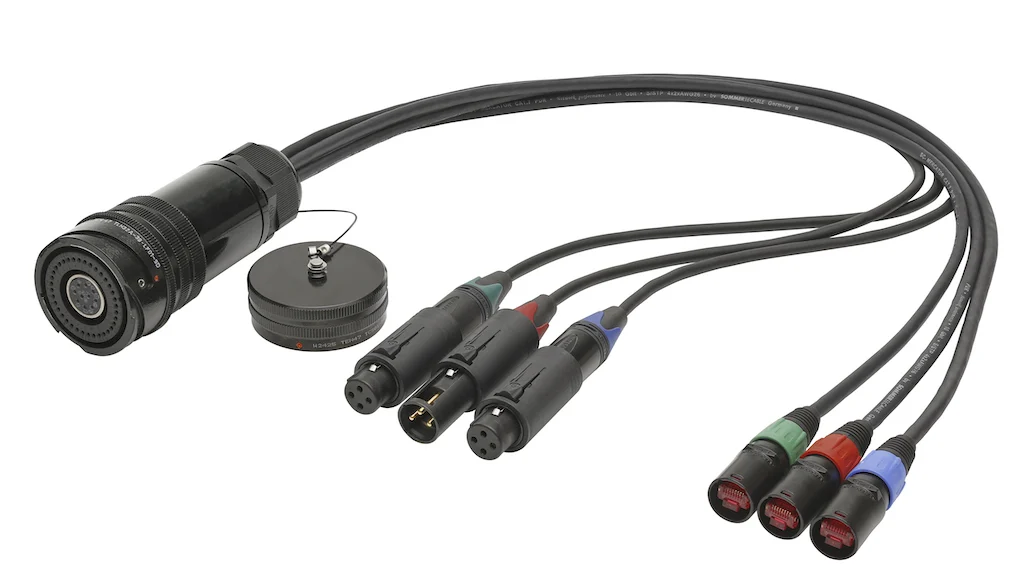

The Hicon HI-LKH222 Connection System
A cable is only as reliable as its termination, and to maximize the efficiency of the SC-Monocat 303, Sommer cable has integrated it into a comprehensive system featuring the Hicon HI-LKH222 connector. This 54-pin multipin connector, based on the robust CIR Size 32 industrial standard, allows all six internal lines (3x CAT, 3x DMX) to be mated in a single, secure movement.
The use of a single large-format connector significantly reduces the time required for load-ins and load-outs. Instead of technicians having to find and plug in six individual cables, a single connection point establishes the entire data and control link between a stage box and a front-of-house (FOH) console or a rack system. This "one-plug" philosophy not only saves time but also reduces the risk of patching errors, which can be costly and time-consuming to troubleshoot during the high-pressure environment of a soundcheck or broadcast countdown. The HI-LKH222’s design ensures that the high-speed Ethernet connections maintain their performance characteristics through the connector interface, a technical hurdle that many lower-quality multipin systems fail to clear.
Chronology of Development and Industry Context
The development of the SC-Monocat 303 is the result of several years of observation within the live events sector. In the early 2010s, the industry began a slow but steady migration toward networked audio and lighting. Initially, technicians used standard "tactical" Ethernet cables, often taping multiple lines together to create makeshift looms. As the number of required lines increased—one for primary audio, one for redundant audio, one for lighting control, and others for remote amplifier management—these "taped looms" became heavy, inflexible, and prone to internal damage.
Sommer cable’s engineers identified the need for a factory-integrated solution that could provide the necessary bandwidth of CAT.7 while maintaining the specialized impedance required for DMX. The SC-Monocat 303 represents the latest iteration in this evolutionary chain. It follows previous successful hybrid models but introduces a higher density of CAT.7 lines, reflecting the modern standard where redundancy (Primary/Secondary networks) plus an additional utility line has become the baseline requirement for professional tours.
Official Perspective: Reliability as a Core Value
Peter Rieck, a lead product developer at Sommer cable, emphasized the practical philosophy behind the new cable. According to Rieck, the goal was to create a product that addresses the reality of the workspace rather than just meeting theoretical lab specifications. "We wanted to develop a line that convinces in real everyday work: slim, flexible, and yet uncompromisingly robust," Rieck stated.
He further noted that the combination of the SC-Monocat 303 and the HI-LKH222 connector creates a synergy that cleans up the signal path. "In combination with the HI-LKH222, a system is created that bundles several signal paths cleanly in one plugging process. Fewer cables, less effort, more clarity—and with the reliability that you can expect from Sommer cable over many years." This focus on longevity is a recurring theme in the company’s messaging, positioning the SC-Monocat 303 not as a seasonal accessory but as a long-term capital investment for production companies.
Operational Impact and Market Implications
The release of the SC-Monocat 303 has broader implications for the economics of live production. Labor costs represent a significant portion of any tour’s budget. By reducing the complexity of the cable infrastructure, production companies can potentially reduce the time required for setup, allowing for smaller crews or faster transitions between tour stops. Furthermore, the reduction in total cable weight and volume has a direct impact on logistics, potentially freeing up space in transport vehicles for other essential gear.
In the context of OB vans and mobile broadcast units, the SC-Monocat 303 offers a solution to the "space-weight" paradox. Modern broadcast trucks are packed with more technology than ever before, but their physical dimensions and weight limits are fixed by road regulations. A cable that can carry the load of six individual lines while remaining only 18mm thick allows for more dense patching in the rear of the truck, improving airflow and accessibility.
From a technical standpoint, the move to CAT.7 ensures that the cable is "future-proofed" against the next generation of networking protocols. While many current systems only require CAT.5e or CAT.6, the 600 MHz bandwidth of CAT.7 provides a significant overhead, ensuring that as bitrates increase and more data-intensive video-over-IP solutions become common on stage, the infrastructure will not need to be replaced.
Conclusion and Availability
The SC-Monocat 303 stands as a testament to the specialized engineering required to support the modern entertainment landscape. By bridging the gap between traditional control signals and high-speed data networking, Sommer cable has provided a tool that addresses the specific pain points of the touring professional: durability, handling, and efficiency.
The cable is currently available both as bulk cable (sold by the meter) for custom installations and as fully assembled system solutions terminated with Hicon connectors. To support engineers in their transition to this new system, Sommer cable has indicated that free samples are available upon request, allowing professionals to verify the haptics and performance of the cable in their own specific workflows. As the industry continues to move toward a fully networked future, the SC-Monocat 303 is positioned to be a foundational component of the professional signal chain for years to come.
