Kap Europa, the premier congress center operated by Messe Frankfurt, has announced a comprehensive modernization of its technical infrastructure, specifically focusing on its internal rigging capabilities. In a strategic move to enhance safety, efficiency, and flexibility within its multi-functional event spaces, the venue has integrated a fleet of 48 Stagemaker SR1 D8+ electric chain hoists, complemented by advanced control systems from fiRSTstage. The procurement was facilitated by Cast C. Adolph & RST Distribution, a leading supplier in the event technology sector, while the selection and operational implementation were managed by Gahrens + Battermann GmbH & Co. KG. This upgrade marks a significant milestone for Kap Europa, which has maintained a reputation for architectural excellence and technical sophistication since its inauguration in 2014.
The decision to overhaul the existing hoist inventory was driven by the unique architectural and structural requirements of the Kap Europa building. As a venue designed for high-profile congresses, conferences, and corporate events, the facility features a sophisticated ceiling structure with specific load-bearing limitations. To navigate these constraints while maintaining the high safety standards required for modern event production, Gahrens + Battermann—the venue’s long-standing rigging service provider and technical partner—conducted an exhaustive evaluation of available technologies. The result was a tailored system designed to provide maximum reliability within a very specific operational envelope.
Technical Precision and Structural Constraints
The rigging infrastructure at Kap Europa is defined by several critical parameters that dictate the type of equipment that can be safely deployed. The venue’s existing hanging points are rated for a maximum load of 250 kg each. Furthermore, the structural design strictly prohibits diagonal pulling (schrägzug), requiring perfectly vertical loads to maintain the integrity of the roof and ceiling elements. Another vital constraint is the limitation on lifting speed; to minimize dynamic loads—the additional forces exerted on a structure when a mass is accelerated or decelerated—the maximum hoist speed is restricted to 2 meters per minute.

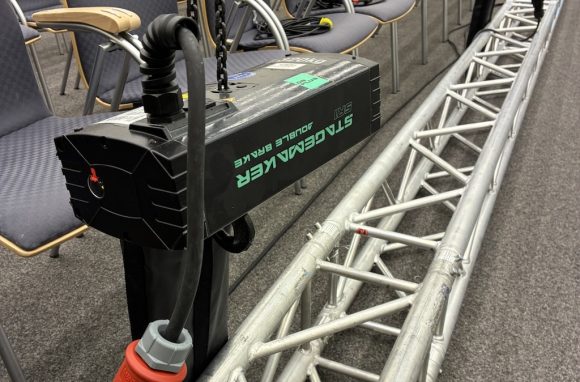

To meet these demanding specifications, Gahrens + Battermann selected the Stagemaker SR1 D8+ electric chain hoist. Specifically, the units were configured in a double-strand (two-fall) arrangement. In this configuration, the SR1 offers a lifting capacity of 320 kg, which aligns perfectly with the venue’s requirements. By utilizing a double-strand setup, the system naturally achieves the lower lifting speeds required by the house rules while providing a safety margin above the 250 kg hanging point limit.
Maximilian Rebell, Head of Production at Gahrens + Battermann, emphasized the suitability of the SR1 for this specific environment. "With the SR1 in double-strand operation, we fulfill the requirements of Kap Europa very well," Rebell stated. The choice of the D8+ standard is also significant. In the German event industry, the D8+ classification (according to SQP2 standards) signifies that the hoist is designed to hold loads over people without the need for an additional secondary safety component, such as a steel safety cable. This is achieved through a higher safety factor and the inclusion of a second independent brake system, making it the industry standard for modern, efficient rigging in public assembly spaces.
Advanced Control and Operational Flexibility
The 48 new chain hoists are not static installations; they are designed for flexible deployment across the various halls and event zones within Kap Europa. This modularity requires a control system that is equally mobile and robust. To manage the new hoist fleet, the venue invested in two fiRSTstage MC-12D motor controllers and a WMC-12 wireless remote control system.
The MC-12D controllers are 12-channel direct control units housed in rugged flight cases for mobile use. These controllers are engineered with several high-end safety features that are essential for large-scale rigging operations. Key among these is the automatic phase correction, which ensures that the motors always rotate in the correct direction regardless of the power source’s phase orientation. Additionally, the units feature comprehensive phase and voltage monitoring to protect the motors from electrical irregularities.
Safety is further bolstered by an integrated, monitored Emergency Stop (E-Stop) system. One of the most practical features for Gahrens + Battermann is the ability to link the two 12-channel controllers. When synchronized, they function as a single 24-channel system, allowing for the coordinated movement of large truss structures. "We can work in two halls in parallel and, if necessary, combine the two controllers into a larger system," Rebell explained, highlighting the logistical efficiency the new hardware provides.
The inclusion of the fiRSTstage WMC-12 wireless remote control adds a layer of operational precision. In traditional rigging, the operator is often tethered to the controller by a cable, which can limit their line of sight. The wireless system allows the rigger to move freely around the work area. This mobility is particularly advantageous when "hitting" (attaching) the motor to the truss, positioning the load, and leveling the truss during the lift. By being able to view the rig from multiple angles while maintaining control, the operator can ensure a safer and more accurate installation.
A Strategic Partnership in Event Technology
The modernization project at Kap Europa is the result of a collaborative effort between several key players in the European event technology industry. Cast C. Adolph & RST Distribution, based in Hagen, Germany, acted as the primary supplier. For Gahrens + Battermann, this project represented their first major investment in the Stagemaker brand of electric chain hoists.
Stagemaker, a brand under the Verlinde umbrella, has a long history in the entertainment industry, known for its "black" hoists that are designed to be discrete in theatrical and event settings. The SR series, which includes the SR1, is characterized by its compact design, quiet operation, and maintenance-friendly internal components.
The feedback from the implementation phase has been overwhelmingly positive. Rebell noted that the transition to the new system was supported by high-level technical consultancy. "We experienced Cast as a competent and professional partner during the acquisition. The advice was technically sound and focused on our specific requirements in Kap Europa," he remarked. This professional synergy ensured that the equipment was not just "off-the-shelf" but was perfectly calibrated for the architectural nuances of the Frankfurt venue.
Background: Kap Europa and Messe Frankfurt
Kap Europa occupies a unique position in the portfolio of Messe Frankfurt. Opened in May 2014, it was the first convention center in the world to receive the Platinum certificate from the German Sustainable Building Council (DGNB). Located in the Europaviertel district, adjacent to the Skyline Plaza, the venue offers 7,700 square meters of event space across four levels, including a large hall for 1,000 people and a smaller hall for 600.
Because the building was designed with sustainability and modern aesthetics in mind, its technical infrastructure must meet high standards of efficiency and discretion. The rigging points are integrated into the ceiling in a way that preserves the visual appeal of the rooms. The choice of the Stagemaker SR1, which is known for its compact profile and low noise emissions, aligns with the venue’s commitment to providing a premium environment for high-level corporate communication.
The rigging service at Kap Europa has been managed by Gahrens + Battermann since the building’s opening. As a full-service provider for event technology, Gahrens + Battermann handles everything from lighting and audio to complex rigging and video systems. Their deep familiarity with the building’s structural quirks made them the ideal partner to oversee this technological transition.
Broader Implications for the Event Industry
The upgrade at Kap Europa reflects a broader trend in the global event industry toward higher safety standards and more specialized equipment. As event designs become more complex—incorporating heavy LED walls, kinetic lighting, and elaborate scenic elements—the demands on rigging infrastructure have increased exponentially.
The shift toward D8+ hoists is a clear indicator of this trend. By eliminating the need for secondary "safeties" (steel wraps or chains used as backups), venues can significantly reduce the time required for load-in and load-out. This increase in efficiency is a major economic driver for congress centers like Kap Europa, where the "turnaround time" between different events is a critical factor in profitability.
Furthermore, the adoption of digital and wireless control systems reflects the industry’s move toward "Rigging 4.0." The ability to monitor voltage, phase, and load in real-time reduces the risk of equipment failure and structural overload. For a venue like Kap Europa, which operates within a strict 250 kg per-point limit, the precision offered by the fiRSTstage controllers is not just a luxury—it is a necessity for risk management.
Chronology of the Modernization
The process began with a technical audit of the existing rigging points and a review of the venue’s historical usage patterns. Gahrens + Battermann identified that the existing hoist stock was reaching the end of its optimal service life and that a more standardized, modern fleet would improve operational safety.
Following the audit, consultations with Cast C. Adolph & RST Distribution took place over several months to determine the exact configuration of the Stagemaker units. The decision to go with the SR1 model was finalized after confirming its performance in the double-strand configuration.
The delivery and commissioning of the 48 hoists and the control systems were timed to coincide with a window in the venue’s busy event schedule. Following the delivery, the technical staff at Gahrens + Battermann underwent specific training on the new fiRSTstage controllers to ensure that the advanced features, such as the linking of units and wireless operation, were fully understood and utilized.
Conclusion and Future Outlook
The successful integration of the Stagemaker SR1 hoists and fiRSTstage control systems ensures that Kap Europa remains at the cutting edge of the international congress market. By investing in high-quality, specialized equipment, Messe Frankfurt and Gahrens + Battermann have reinforced their commitment to safety and technical excellence.
As Kap Europa looks toward the future, the new rigging system provides a scalable and flexible foundation for the next generation of events. Whether hosting a high-tech product launch or an international political summit, the venue is now better equipped than ever to handle the complex mechanical demands of the modern event landscape. The partnership between the venue, the service provider, and the distributor serves as a model for technical modernization in specialized architectural environments, where constraints are not seen as obstacles but as parameters for precision engineering.
